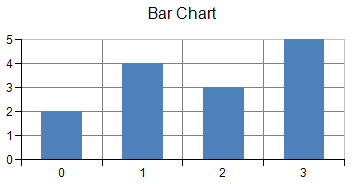

You can create a Y Plot Chart using code or the designer. The following image shows a Y Plot bar type chart.

Bar Chart

For details on the API, see YPlotArea class.

The following classes are also available when creating Y plot type charts:

Using Code

  1. Use the BarSeries class to add data to a Chart control.
  2. Use the YPlotArea class to create a plot area.
  3. Set the location and size of the plot area.
  4. Add the series to the plot area.
  5. Create a label and legend for the chart.
  6. Create a chart model and add the plot area, label, and legend to the model.
  7. Create a chart and add the chart model to it.

Example

The following example demonstrates creating a Y Plot chart and adding unbound data to the control.

C# Copy Code
BarSeries series = new BarSeries();

series.SeriesName = "Series 0";

series.Values.Add(2.0);

series.Values.Add(4.0);

series.Values.Add(3.0);

series.Values.Add(5.0);

YPlotArea plotArea = new YPlotArea();

plotArea.Location = new PointF(0.2f, 0.2f);

plotArea.Size = new SizeF(0.6f, 0.6f);

plotArea.Series.Add(series);

LabelArea label = new LabelArea();

label.Text = "Bar Chart";

label.Location = new PointF(0.5f, 0.02f);

label.AlignmentX = 0.5f;

label.AlignmentY = 0.0f;

LegendArea legend = new LegendArea();

legend.Location = new PointF(0.98f, 0.5f);

legend.AlignmentX = 1.0f;

legend.AlignmentY = 0.5f;

ChartModel model = new ChartModel();

model.LabelAreas.Add(label);

model.LegendAreas.Add(legend);

model.PlotAreas.Add(plotArea);

chart2DControl1.Model = model;
VB Copy Code
Dim series As New FarPoint.Win.Chart.BarSeries()

series.SeriesName = "Series 0"

series.Values.Add(2.0)

series.Values.Add(4.0)

series.Values.Add(3.0)

series.Values.Add(5.0)

Dim plotArea As New FarPoint.Win.Chart.YPlotArea()

plotArea.Location = New PointF(0.2F, 0.2F)

plotArea.Size = New SizeF(0.6F, 0.6F)

plotArea.Series.Add(series)

Dim label As New FarPoint.Win.Chart.LabelArea()

label.Text = "Bar Chart"

label.Location = New PointF(0.5F, 0.02F)

label.AlignmentX = 0.5F

label.AlignmentY = 0.0F

Dim legend As New FarPoint.Win.Chart.LegendArea()

legend.Location = New PointF(0.98F, 0.5F)

legend.AlignmentX = 1.0F

legend.AlignmentY = 0.5F

Dim model As New FarPoint.Win.Chart.ChartModel()

model.LabelAreas.Add(label)

model.LegendAreas.Add(legend)

model.PlotAreas.Add(plotArea)

chart2DControl1.Model = model

Using the Chart Designer

  1. Select the PlotArea Collection editor.
  2. Set properties as needed.
