Table Display in the Sheet Corner
Support Options
Spread Windows Forms 6.0 Product Documentation > Developer's Guide > Customizing the Sheet Appearance > Customizing the Sheet Corner Appearance > Table Display in the Sheet Corner

Glossary Item Box

The sheet corner can have a table or grid display with columns and rows of cells, though cells are not editable. You can switch between table (range) display and single cell display by changing the AllowTableCorner property of the sheet (Sheet View class).

The sheet corner also supports cell spans in that table display.

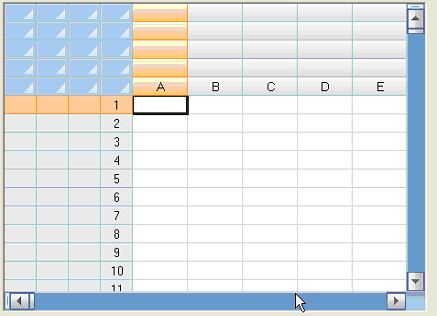

Here is an example of a table sheet corner display:

table sheet corner display

When you set the AllowTableCorner property of the sheet to true, the sheet corner displays as a table with the number of columns equal to the numbers of row headers of the sheet and the number of rows equal to the number of column header of the sheet.

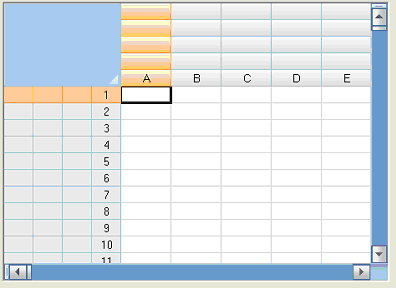

Here is an example of a single-cell sheet corner display:

sheet corner with single-cell display (no table)

When you set the AllowTableCorner property of the sheet to false, the first cell of the sheet corner spans all the area of the sheet corner.

Return to the overview of Customizing the Sheet Corner Appearance

Example (with Table in Corner)

Here is the code for setting the sheet corner to appear as a table (as shown in the figure above).

C# Copy Code
fpSpread1.ActiveSheet.AllowTableCorner = true;

fpSpread1.ActiveSheet.SheetCorner.ColumnCount = 4;

fpSpread1.ActiveSheet.SheetCorner.RowCount = 5;

VB Copy Code
FpSpread1.ActiveSheet.AllowTableCorner = True

FpSpread1.ActiveSheet.SheetCorner.ColumnCount = 4

FpSpread1.ActiveSheet.SheetCorner.RowCount = 5


Example (with Corner as Single Cell)

Here is the code for setting the sheet corner to appear as a single cell (as shown in the figure above).

C# Copy Code
fpSpread1.ActiveSheet.AllowTableCorner = false;

fpSpread1.ActiveSheet.SheetCorner.ColumnCount = 4;

fpSpread1.ActiveSheet.SheetCorner.RowCount = 5;

VB Copy Code
FpSpread1.ActiveSheet.AllowTableCorner = False

FpSpread1.ActiveSheet.SheetCorner.ColumnCount = 4

FpSpread1.ActiveSheet.SheetCorner.RowCount = 5
