Polar Area Charts
Support Options
Spread Windows Forms 7.0 Product Documentation > Developer's Guide > Working with the Chart Control > Understanding Charts > Plot Types > Polar Plot Types > Polar Area Charts

Glossary Item Box

The area chart can be a polar plot such as the one shown in the following figure:

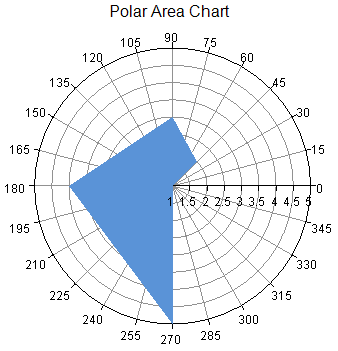

Area Chart, example of polar plot

Each point has two data values: x (angle) and y (radius). Each point is visualized as a point on an area.

A polar area series can be assigned a border, fill effect, and a depth for the area. Each point can be assigned a border and a fill effect for the area. You can also specify whether the area is closed. Assigning null for a border or fill effect indicates that the property is unset. Depth is measured relative to the plot area depth (0 = no depth, 1 = full depth of plot area).

For more information on the area series object in the API, refer to the PolarAreaSeries class.
