Allowing the User to Change the Chart
See Also Support Options
Spread Windows Forms 7.0 Product Documentation > Developer's Guide > Working with the Chart Control > Creating Charts > Using the Chart Control > Allowing the User to Change the Chart

Glossary Item Box

You can allow the users to resize, move, or change the range of elements displayed by the chart. The user can also select elements on the chart and the related cell range in the Spread control will be selected.

The user can make the following changes at run time.

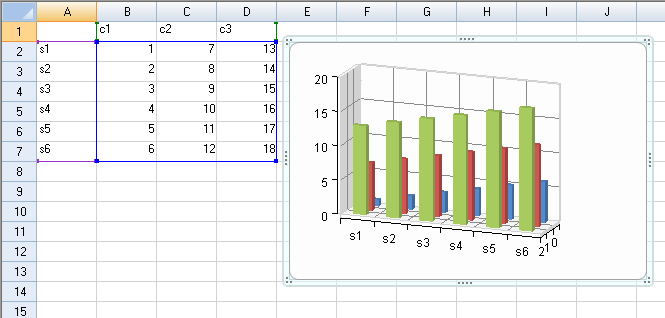

The following image shows a selected range of data used by the chart. Put the mouse pointer over the blue square to get resize arrows.

Select Chart

You can prevent the user from moving or resizing the chart. The Locked property prevents the user from moving and resizing the chart control.

Using Code

This example sets the Locked, CanMove, and CanResize properties.

Example

C# Copy Code
FarPoint.Win.Spread.Chart.SpreadChart chart;
chart = fpSpread1.Sheets[0].AddChart(0, 0, typeof(FarPoint.Win.Chart.BarSeries), 400, 400, 200, 80, FarPoint.Win.Chart.ChartViewType.View2D, true);
chart.Locked = true;
//chart.CanSize = FarPoint.Win.Spread.DrawingSpace.Sizing.None;
//chart.CanMove = FarPoint.Win.Spread.DrawingSpace.Moving.Horizontal;
VB Copy Code
Dim chart As FarPoint.Win.Spread.Chart.SpreadChart
Dim range As New FarPoint.Win.Spread.Model.CellRange(0, 0, 7, 4)
chart = FpSpread1.Sheets(0).AddChart(range, GetType(FarPoint.Win.Chart.BarSeries), 400, 300, 300, 80, FarPoint.Win.Chart.ChartViewType.View3D, False)
chart.Locked = True
'chart.CanSize = FarPoint.Win.Spread.DrawingSpace.Sizing.None
'chart.CanMove = FarPoint.Win.Spread.DrawingSpace.Moving.Horizontal
