Customizing Split Boxes
Support Options
Spread Windows Forms 7.0 Product Documentation > Developer's Guide > Customizing Sheet Interaction > Customizing Interaction with a Sheet > Customizing Split Boxes

Glossary Item Box

You can determine the display and placement of the split boxes. By default, the split boxes are shown and appear at the leading edge of each of the scroll bars, as shown in the figure below. You can change these by setting a property or by using Spread Designer.

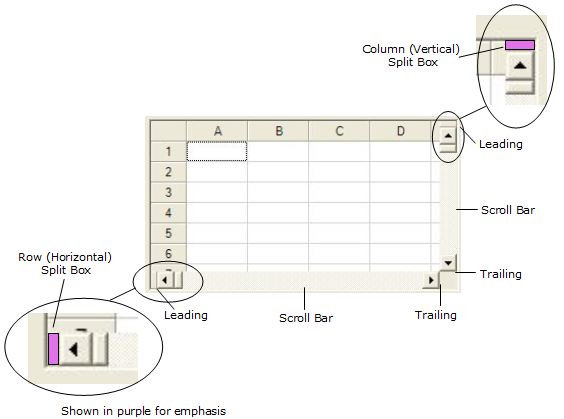

Split Boxes in a Control

When the end user clicks and drags the split box, the view is split into separate viewports. For more information on viewports, refer to Customizing Viewports.

Customization Property and Enumeration
Placement of split box relative to the scroll bar

ColumnSplitBoxAlignment property in FpSpread class

RowSplitBoxAlignment property in FpSpread class

SplitBoxAlignment enumeration

Whether or when to display the split box

ColumnSplitBoxPolicy property in FpSpread class

RowSplitBoxPolicy property in FpSpread class

SplitBoxPolicy enumeration

Using the Properties Window

  1. At design time, in the Properties window, select the Spread component.
  2. Select (in the Splitters category) the ColumnSplitBoxAlignment, RowSplitBoxAlignment, ColumnSplitBoxPolicy, or RowSplitBoxPolicy property.
  3. Click the drop-down arrow to display the choices and select the value. Repeat this for each property.

Using Code

Set the alignment and policy properties for the row or column of viewports for the FpSpread component. In this example, the split box for the columns is at the leading edge of the scroll bar and is displayed as needed; for the rows, the split box is at the trailing edge of the scroll bar and is always displayed.

Example

C# Copy Code
fpSpread1.ColumnSplitBoxAlignment = FarPoint.Win.Spread.SplitBoxAlignment.Leading;
fpSpread1.RowSplitBoxAlignment = FarPoint.Win.Spread.SplitBoxAlignment.Trailing;
fpSpread1.ColumnSplitBoxPolicy = FarPoint.Win.Spread.SplitBoxPolicy.AsNeeded;
fpSpread1.RowSplitBoxPolicy = FarPoint.Win.Spread.SplitBoxPolicy.Always;
VB Copy Code
FpSpread1.ColumnSplitBoxAlignment = FarPoint.Win.Spread.SplitBoxAlignment.Leading
FpSpread1.RowSplitBoxAlignment = FarPoint.Win.Spread.SplitBoxAlignment.Trailing
FpSpread1.ColumnSplitBoxPolicy = FarPoint.Win.Spread.SplitBoxPolicy.AsNeeded
FpSpread1.RowSplitBoxPolicy = FarPoint.Win.Spread.SplitBoxPolicy.Always

Using the Spread Designer

  1. From the Settings menu, select SplitBox.
  2. In the Split Box tab, set the values for the ColumnSplitBoxAlignment, RowSplitBoxAlignment, ColumnSplitBoxPolicy, or RowSplitBoxPolicy property.
  3. Click OK.
  4. From the File menu choose Apply and Exit to apply your changes to the component and exit Spread Designer.

or

  1. Select the Spread component (or select Spread from the pull-down menu).
  2. In the property list for the component (in the Splitters category), select the ColumnSplitBoxAlignment, RowSplitBoxAlignment, ColumnSplitBoxPolicy, or RowSplitBoxPolicy property.
  3. Click the drop-down arrow to display the choices and select the value. Repeat this for each property.
  4. From the File menu choose Apply and Exit to apply your changes to the component and exit Spread Designer.
