Using Touch Support with InputMan Cells
See Also Support Options
Spread Windows Forms 7.0 Product Documentation > Developer's Guide > Using Touch Support with the Component > Using Touch Support > Using Touch Support with InputMan Cells

Glossary Item Box

You can use touch support with GcDateTime and GcTextBox cells.

You can tap side buttons in the cells to change the cell values.

Using Code

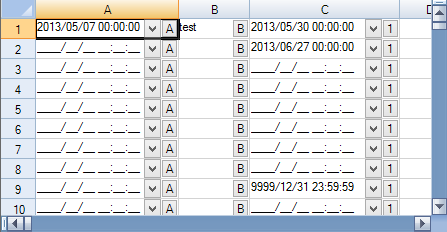

The following example creates side buttons for GcDateTime cells and a GcTextBox cell. The DropDownOpening event has a ByTouch property that returns whether the drop-down button was opened with a touch gesture.

CS Copy Code
GrapeCity.Win.Spread.InputMan.CellType.SideButtonInfo testbutton = new GrapeCity.Win.Spread.InputMan.CellType.SideButtonInfo();
testbutton.Behavior = GrapeCity.Win.Spread.InputMan.CellType.SideButtonBehavior.SpinDown;
testbutton.Delay = 300;
testbutton.Interval = 5;
testbutton.Text = "1";

GrapeCity.Win.Spread.InputMan.CellType.GcDateTimeCellType dateCellType = new GrapeCity.Win.Spread.InputMan.CellType.GcDateTimeCellType();
dateCellType.SideButtons.Add(new GrapeCity.Win.Spread.InputMan.CellType.SideButtonInfo() { Text = "A" });
this.fpSpread1_Sheet1.Columns[0].CellType = dateCellType;

GrapeCity.Win.Spread.InputMan.CellType.GcTextBoxCellType textCellType = new GrapeCity.Win.Spread.InputMan.CellType.GcTextBoxCellType();
textCellType.SideButtons.Add(new GrapeCity.Win.Spread.InputMan.CellType.SideButtonInfo() { Text = "B" });
this.fpSpread1_Sheet1.Columns[1].CellType = textCellType;

GrapeCity.Win.Spread.InputMan.CellType.GcDateTimeCellType dateCellType2 = new GrapeCity.Win.Spread.InputMan.CellType.GcDateTimeCellType();
dateCellType2.SideButtons.Add(testbutton);
this.fpSpread1_Sheet1.Columns[2].CellType = dateCellType2;

void IMCellType_DropDownOpening(object sender, GrapeCity.Win.Spread.InputMan.CellType.DropDownOpeningEventArgs e)
        {

           listBox1.Items.Add(e.ByTouch.ToString());
        }

        private void fpSpread1_EditModeOn(object sender, EventArgs e)
        {
            if (fpSpread1.EditingControl is GrapeCity.Win.Spread.InputMan.CellType.GcDateTime)
                ((GrapeCity.Win.Spread.InputMan.CellType.GcDateTime)fpSpread1.EditingControl).DropDownOpening += new EventHandler(IMCellType_DropDownOpening);
        }

        private void fpSpread1_EditModeOff(object sender, EventArgs e)
        {
            if (fpSpread1.EditingControl is GrapeCity.Win.Spread.InputMan.CellType.GcDateTime)
                ((GrapeCity.Win.Spread.InputMan.CellType.GcDateTime)fpSpread1.EditingControl).DropDownOpening -= new EventHandler(IMCellType_DropDownOpening);
        }
VB Copy Code
Dim testbutton As New GrapeCity.Win.Spread.InputMan.CellType.SideButtonInfo()
testbutton.Behavior = GrapeCity.Win.Spread.InputMan.CellType.SideButtonBehavior.SpinDown
testbutton.Delay = 300
testbutton.Interval = 5
testbutton.Text = "1"

Dim dateCellType As New GrapeCity.Win.Spread.InputMan.CellType.GcDateTimeCellType()
dateCellType.SideButtons.Add(New GrapeCity.Win.Spread.InputMan.CellType.SideButtonInfo() With {.Text = "A"})
FpSpread1_Sheet1.Columns(0).CellType = dateCellType

Dim textCellType = New GrapeCity.Win.Spread.InputMan.CellType.GcTextBoxCellType()
textCellType.SideButtons.Add(New GrapeCity.Win.Spread.InputMan.CellType.SideButtonInfo() With {.Text = "B"})
FpSpread1_Sheet1.Columns(1).CellType = textCellType

Dim dateCellType2 As New GrapeCity.Win.Spread.InputMan.CellType.GcDateTimeCellType()
dateCellType2.SideButtons.Add(testbutton)
FpSpread1_Sheet1.Columns(2).CellType = dateCellType2

Private Sub IMCellType_DropDownOpening(ByVal sender As Object, ByVal e As GrapeCity.Win.Spread.InputMan.CellType.DropDownOpeningEventArgs)
        ListBox1.Items.Add(e.ByTouch.ToString())
    End Sub

    Private Sub FpSpread1_EditModeOff(sender As Object, e As EventArgs) Handles FpSpread1.EditModeOff
        If TypeOf (FpSpread1.EditingControl) Is GrapeCity.Win.Spread.InputMan.CellType.GcDateTime Then
            RemoveHandler CType(FpSpread1.EditingControl, GrapeCity.Win.Spread.InputMan.CellType.GcDateTime).DropDownOpening, AddressOf IMCellType_DropDownOpening
        End If
    End Sub

    Private Sub FpSpread1_EditModeOn(sender As Object, e As EventArgs) Handles FpSpread1.EditModeOn
        If TypeOf (FpSpread1.EditingControl) Is GrapeCity.Win.Spread.InputMan.CellType.GcDateTime Then
            AddHandler CType(FpSpread1.EditingControl, GrapeCity.Win.Spread.InputMan.CellType.GcDateTime).DropDownOpening, AddressOf IMCellType_DropDownOpening
        End If
    End Sub
