Properties in the C1WebTopicBar Group Collection Editor

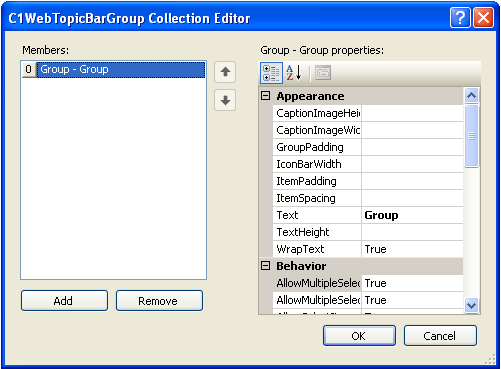

The picture below represents the collection of properties for C1WebTopicBarGroup Collection Editor. The C1WebTopicBarGroup Collection Editor allows the user to view and modify groups. Note that when the group is selected for modification, the group's name appears above the group's properties.

The following properties are available below for the user in the C1WebTopicBarGroup Collection Editor:

· C1WebTopicBarGroup Appearance Properties

The appearance properties change the appearance of the group. Below are the appearance properties and their functions:

Property	Description
CaptionImageHeight	Gets or sets the height of the image set in theCaptionImageUrl property of header styles.
CaptionImageWidth	Gets or sets the width of image set in the CaptionImageUrl property of header styles.
GroupPadding	Default space between the group's border and items in the group.
IconBarWidth	Sets or returns the width of the icon bar drawn on the side of the groups.
ItemPadding	Gets or sets the default space between the item's border and content.
ItemSpacing	Gets or sets the space between the items in the group.
Text	Gets or sets text which is displayed in the group header.
TextHeight	Gets or sets the height of the group header text.
WrapText	Gets or sets a value that indicates whether the item's text is wrapped.

· C1WebTopicBarGroup Behavior Properties

The behavior properties change the behavior of the group. Below are the behavior properties and their functions:

Property	Description
AllowMultipleSelect	If False, only a single item can be selected in the group.
AllowMultipleSelectInControl	If False, only a single item can be selected in the all of the groups in the control.
AllowSelectItem	Determines whether a user will be able to select an item in the group.
AllowUnselectItem	If True, user can unselect the item by clicking it the second time.
AlwaysHasSelected	If True and if AllowSelectItem=True at minimum one item in the group is selected.
ClientScripts	Collection of client-side scripts associated with the item.
Collapsed	If set to True, it collapses the group.
Enabled	Gets or sets a value indicating whether the group is collapsed or not.
EnableExpandCollapse	Gets or sets a value indicating whether a user can expand or collapse the group by double-clicking on the header or clicking on the indicator image.
PopulateOnDemand	Gets or sets a value that indicates whether the group is populated dynamically.
ToolTip	Gets or sets the ToolTip text displayed when the mouse pointer rests over the group.
Visible	Gets or sets a value indicating whether the group is visible or not.

· C1WebTopicBarGroup Misc Properties

The miscellaneous property and its function are listed below:

Property	Description
Items	Gets or sets the item that is located at a specified index of the collection.

· C1WebTopicBarGroup Style Properties

The style properties change the group's style. The style properties and their functions are listed below:

Property	Description
CollapsedHeaderStyle	Default style for the group headers in the collapsed state.
DisabledGroupStyle	Default style for the disabled groups.
DisabledHeaderStyle	Default style for the group headers in the disabled state.
DisabledItemStyle	Default style for the items in the disabled state.
ExpandedHeaderStyle	Default style for the group headers in the expanded state.
GroupStyle	Default style for the groups.
ItemStyle	Default style for the items.
MouseOverCollapsedHeaderStyle	Default style for the group headers in the collapsed state when mouse hovers over them.
MouseOverExpandedHeaderStyle	Default style for the group headers in the expanded state when mouse hovers over them.
MouseOverItemStyle	Default style for the items when the mouse hovers over them.
MouseOverSelectedItemStyle	Style for the child items when the mouse hovers over the selected item.
SelectedItemStyle	Default style for the items in the selected state.
SeparatorStyle	Default style for the separators.
