The Group Collection Editor and Item Collection Editor are an application in the C1.Web.Command.Design.dll assembly. The main part for each of the editor's application consists of a windows form which conveniently allows the user to edit the C1WebTopicBar, C1WebTabStrip, or C1WebToolBar controls.

The Group Collection Editor and Item Collection Editor provide the same functionality, but contain a few different properties for the three controls, C1WebTopicBar, C1WebToolBar, and C1WebTabStrip. These editors enable the user to add or remove items and groups in the hierarchy as well as modify the groups' or items' properties.

The Group Collection Editor is accessible from the controls' Tasks menus, context menus, or properties windows. To access the Group Collection Editor you can do one of the following:

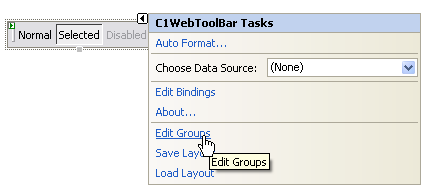

·      Select Edit Groups from the C1WebTopicBar, C1WebToolBar, or C1WebTabStrip's tasks menu.

·      Right-click on the C1WebTopicBar, C1WebToolBar, or C1WebTabStrip and select Edit Groups from its context menu.

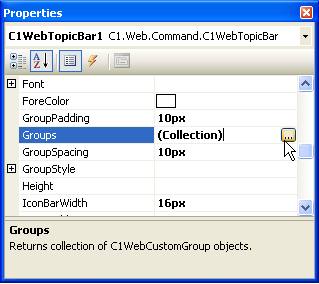

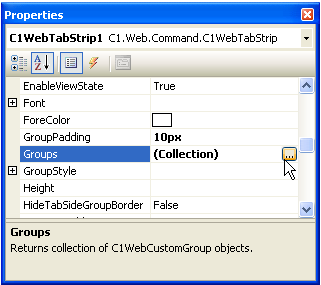

·      Click on the ellipsis button next to the Groups property in the C1WebTopicBar, C1WebToolBar, or C1WebTabStrip properties sheet.

The Items Collection Editor is accessible from the controls' Group Collection Editors or properties windows. To access the Items Collection Editor you can do one of the following:

·      Click on the ellipsis button of the Items property in the Group Collection Editor.

·      Click on the ellipsis button of the Groups property in the C1WebTopicBar, C1WebToolBar, or C1WebTabStrip Properties sheet, and click on the ellipsis button of the Items property in the Group Collection Editor.

Properties in the C1WebTopicBar Group Collection Editor

Properties in the C1WebToolBar Group Collection Editor

Properties in the C1WebTabStrip Group Collection Editor

Properties in the C1WebTopicBarItem Collection Editor

Properties in the C1WebToolBarItem Collection Editor

Properties in the C1WebTabStripItem Collection Editor
