The default location of the splitter bar is 100 pixels from the left for a vertical split and 100 pixels from the top for a horizontal split. You can adjust the initial location of the splitter bar using the SplitterDistance property. In this topic, you will learn how to set the SplitterDistance property in Design view, in Source view, and in code.
In Design View
Complete the following steps:
1. Add C1Splitter to the Web form.
2. Right-click on the control and select Properties.
3. In the Properties window, locate the SplitterDistance property and specify a number to represent the location of the splitter bar from the left edge of the splitter bar. For this example, we'll set it to "50".
4. Run the program.
In Source View
To set the splitter bar location, place SplitterDistance="50" within the <cc1:C1Splitter> tag. Once the SplitterDistance property has been set, the markup will resemble the following:
<cc1:C1Splitter ID="C1Splitter1" runat="server" Height="251px" Width="217px" SplitterDistance="50">
In Code
Complete the following steps:
1. Import the following namespace into your project:
Imports C1.Web.UI.Controls.C1Splitter
• C#
using C1.Web.UI.Controls.C1Splitter;
2. Add the following code to the Page_Load event to set the SplitterDistance property:
C1Splitter1.SplitterDistance = 50
• C#
C1Splitter1.SplitterDistance = 50;
3. Run the program.
This Topic Illustrates
the Following:

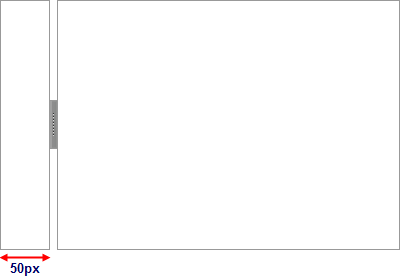

The following image depicts a C1Splitter with a splitter set 50 pixels from the left side of the control:
|
