The C1MonthCalendar and C1MultiMonthCalendar controls can be used to provide navigation and additional information for a C1Scheduler control. This can be done by binding control properties.



C1MonthCalendar/C1MultiMonthCalendar Property	C1Scheduler Property	Comments
CalendarHelper	CalendarHelper	Binding these properties keeps the culture and calendar-dependant properties used by both controls in sync. This is important for default navigation.
VisibleDates	SelectedDates	Binding these properties allows the C1Scheduler control to be navigated when a user selects days in a calendar. For example, if you select four days in the C1MonthCalendar, those four days will be shown in the C1Scheduler control.
BoldedDates	BoldedDates	Binding these properties makes days with appointments bold in a calendar control.



For example, the following XAML binds C1Scheduler to a C1MultiMonthCalendar control.

<Window

       xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

       xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

       xmlns:System="clr-namespace:System;assembly=mscorlib"

       x:Class="UntitledProject1.Window1"

       x:Name="Window"

       Title="Window1"

       Width="924" Height="480" xmlns:c1sched="http://schemas.componentone.com/wpf/C1Schedule">



<Grid>

  <Grid.ColumnDefinitions>

    <ColumnDefinition/>

    <ColumnDefinition/>

  </Grid.ColumnDefinitions>

  <c1sched:C1Scheduler Name="scheduler1" Grid.Column="1"

MonthStyle="{DynamicResource {ComponentResourceKey

TypeInTargetAssembly=c1sched:C1Scheduler, ResourceId=MonthStyle2007}}"

WeekStyle="{DynamicResource {ComponentResourceKey

       TypeInTargetAssembly=c1sched:C1Scheduler, ResourceId=WeekStyle2007}}"

WorkingWeekStyle="{DynamicResource {ComponentResourceKey

TypeInTargetAssembly=c1sched:C1Scheduler, ResourceId=WorkingWeekStyle2007}}"

OneDayStyle="{DynamicResource {ComponentResourceKey

       TypeInTargetAssembly=c1sched:C1Scheduler, ResourceId=OneDayStyle2007}}">

       <c1sched:C1Scheduler.CalendarHelper>

             <c1sched:CalendarHelper WeekStart="Sunday" EndDayTime="18:20:00" StartDayTime="09:20:00"

                    WorkDays="Tuesday,Wednesday,Friday,Saturday">

                    <c1sched:CalendarHelper.Holidays>

                           <System:DateTime>2007-11-02</System:DateTime>

                    </c1sched:CalendarHelper.Holidays>

             </c1sched:CalendarHelper>

       </c1sched:C1Scheduler.CalendarHelper>

  </c1sched:C1Scheduler>



  <c1sched:C1MultiMonthCalendar Name="calendar1" Margin="10,10,10,0"

Grid.Column="0" VerticalAlignment="Stretch" MaxSelectionCount="42"

       SelectedDates="{Binding ElementName=scheduler1, Path=VisibleDates, Mode=OneWay}"

       BoldedDates="{Binding ElementName=scheduler1, Path=BoldedDates, Mode=OneWay}"

       CalendarHelper="{Binding ElementName=scheduler1, Path=CalendarHelper, Mode=OneWay}"

GenerateAdjacentMonthDays="true" >

     </c1sched:C1MultiMonthCalendar>

</Grid>

</Window>

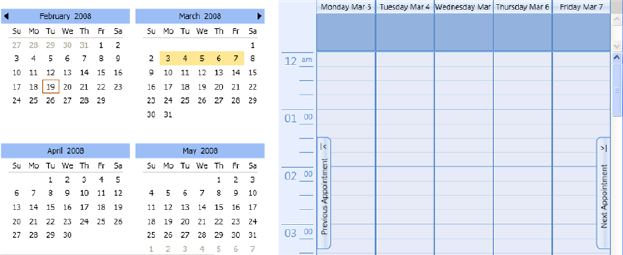

If several dates are selected in the C1MultiMonthCalendar, the C1Scheduler control changes to show the selected dates.
