Spread Windows Forms 7.0 Product Documentation
BarSeries Class
Members  See Also  Support Options
FarPoint.Win.Chart Assembly > FarPoint.Win.Chart Namespace : BarSeries Class

Glossary Item Box

Represents a bar series in a Y plot area.

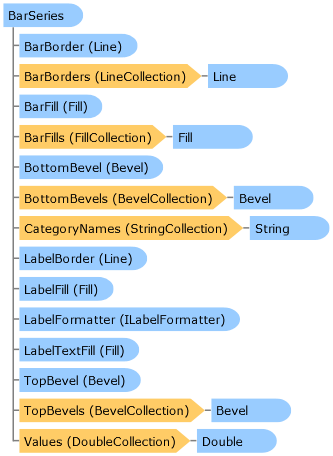

Object Model

BarSeries ClassLine ClassLineCollection ClassLine ClassFill ClassFillCollection ClassFill ClassBevel ClassBevelCollection ClassBevel ClassStringCollection ClassString ClassLine ClassFill ClassILabelFormatter InterfaceFill ClassBevel ClassBevelCollection ClassBevel ClassDoubleCollection ClassDouble Structure


Visual Basic (Declaration)
Public Class BarSeries
   Inherits YSeries
Visual Basic (Usage)Copy Code
Dim instance As BarSeries
public class BarSeries : YSeries


Each point contains a single value. Bar borders and bar fills can be assigned for the series or for a point in the series with null (Nothing in VB) indicating unassigned. Bar width and bar depth are measured relative to the floor grid cell (with a range of 0 to 1). Bar origin can be automatically generated or manually assigned.

Inheritance Hierarchy



Target Platforms: Windows 2000 Professional (SP4), Windows 2000 Server, Windows 2003 Server (SP1), Windows 2008, Windows XP (SP2), Windows Vista, Windows 7, Windows 8

See Also
