Customizing Header Label Text
See Also Support Options
Spread Windows Forms 7.0 Product Documentation > Developer's Guide > Customizing Row, Column, and Cell Appearance > Customizing the Appearance of Headers > Customizing Header Label Text

Glossary Item Box

By default the Spread component displays letters in the column headers and numbers in the row headers. Besides this automatic text, you can add labels to any or all of the header cells. You can add customize the header label text, as shown in the following figure where the first four columns have custom labels.

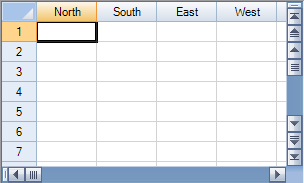

Spread with custom column header text

To specify the custom text for a header label, you can use the Label property of the ColumnHeader.Column or RowHeader.Row shortcut objects or you can use the Text property of the Cells shortcut objects. For headers with multiple columns and multiple rows, you use the Text property of the Cells shortcut objects. Refer to the example in Creating a Header with Multiple Rows or Columns. For more information on the individual properties, refer to the Column Label property or the Row Label property.

Cells in the headers are separate from the cells in the data area, so the coordinates for cells in the headers start at 0,0 and count up from upper left to lower right within the header. The sheet corner cell is separate and is not counted when figuring header cell coordinates.

Using the Properties Window

  1. At design time, in the Properties window, select the Spread component.
  2. Select the Sheets property.
  3. Click the button to display the SheetView Collection Editor.
  4. Click the sheet for which you want to change the header labels.

    You cannot add or change custom text in cells other than changing the labels display when using the Properties window.

  5. In the property list, select the Cells property and click the button to display the Cell, Column, and Row Editor.
  6. Select the column for which you want to change the labels displayed to custom text.
  7. Set the Label property to set the custom text.
  8. Click OK to close the Cell, Column, and Row Editor.
  9. Click OK to close the SheetView Collection Editor.

Using a Shortcut

Example

This example code sets custom text for the labels in the first four column headers.

C# Copy Code
// Set custom text for columns A through D.
fpSpread1.Sheets[0].ColumnHeader.Columns[0].Label = "North";
fpSpread1.Sheets[0].ColumnHeader.Columns[1].Label = "South";
fpSpread1.Sheets[0].ColumnHeader.Columns[2].Label = "East";
fpSpread1.Sheets[0].ColumnHeader.Columns[3].Label = "West";
VB Copy Code
' Set custom text for columns A through D.
FpSpread1.Sheets(0).ColumnHeader.Columns(0).Label = "North"
FpSpread1.Sheets(0).ColumnHeader.Columns(1).Label = "South"
FpSpread1.Sheets(0).ColumnHeader.Columns(2).Label = "East"
FpSpread1.Sheets(0).ColumnHeader.Columns(3).Label = "West"

Using the Spread Designer

  1. Select the sheet tab for the sheet for which you want to set custom header text.
  2. Select the row or column for which you want to set custom header text, then right-click and choose Headers.
  3. In the Header Editor, double-click the header for which you want to display custom text.

    If there is only one header row or column, click the one displayed cell with the text "<Default>".

  4. Edit the text to be the custom text you want, and then press Enter to stop editing.
  5. When you have edited all the header text you want to edit, click OK to close the Header Editor, then click Yes to apply your changes to the selection.
  6. From the File menu choose Apply and Exit to apply your changes to the component and exit Spread Designer.
